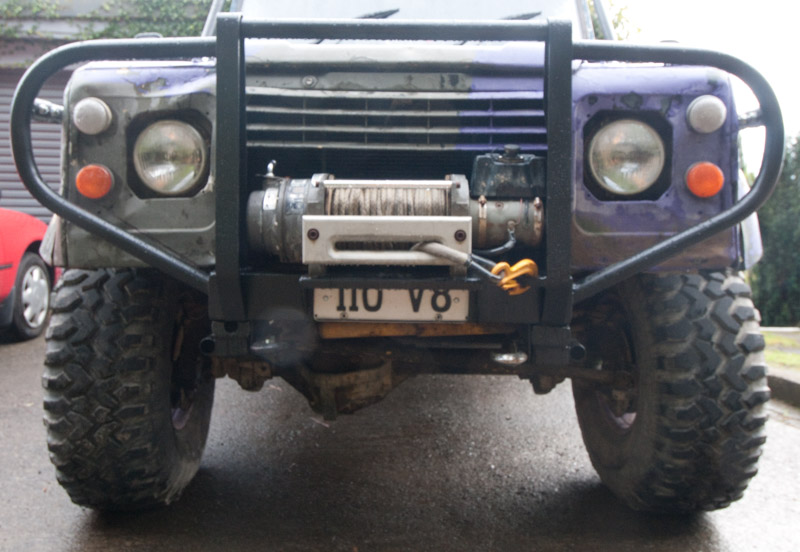

The front is a "standard" mount for the 12v Warn Series 12 Industrial

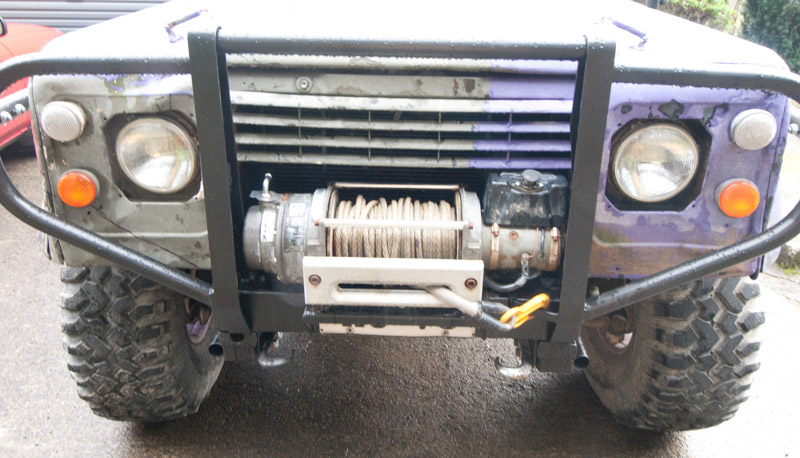

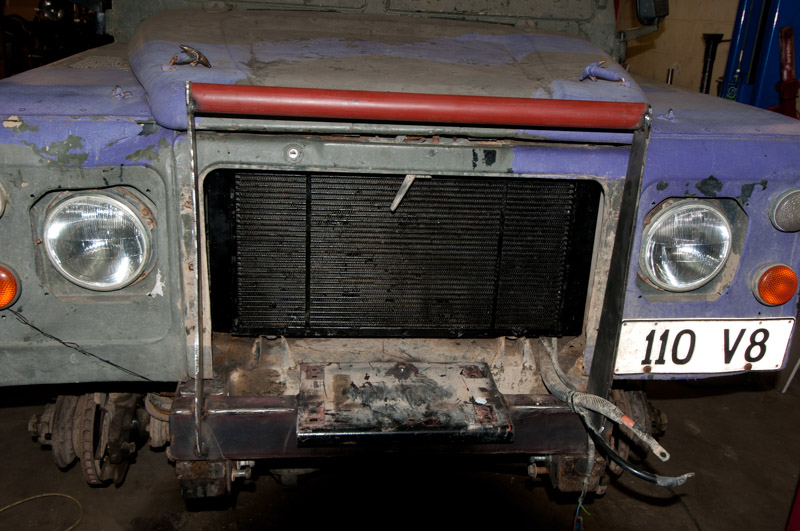

| Front winch is mounted as far back as possible | |
|
| It has a custom alloy hawse fairlead from Warren at 4WDbits | |
|
|
The rear is a custom mount for the 12v Superwinch Husky 10

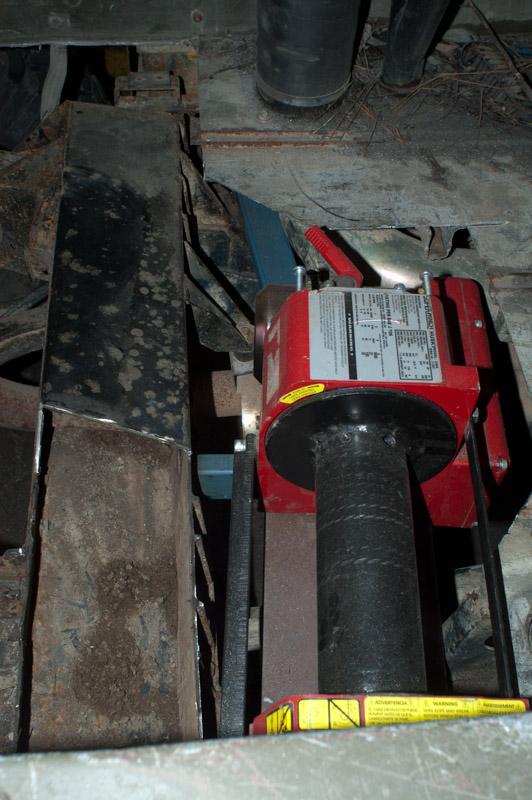

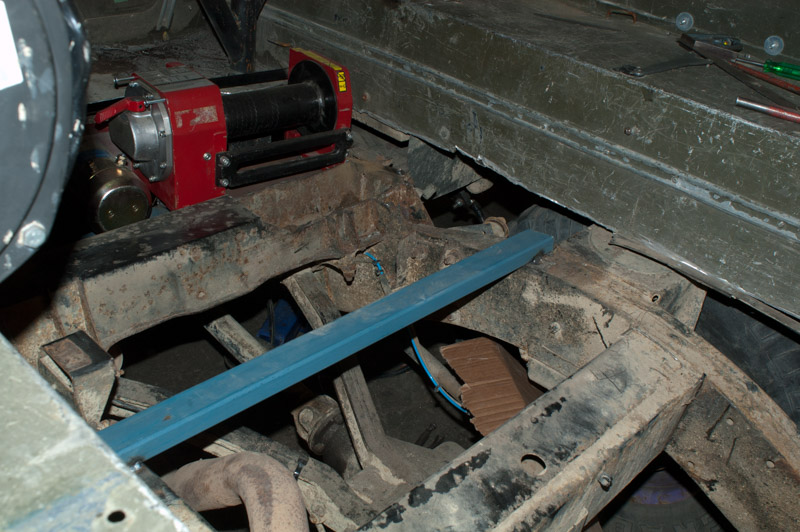

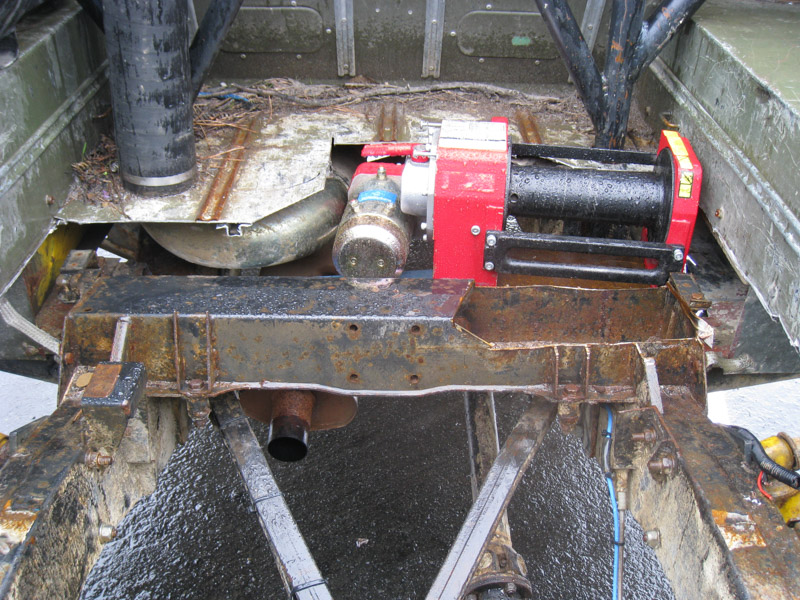

| Location of Husky |  |
|

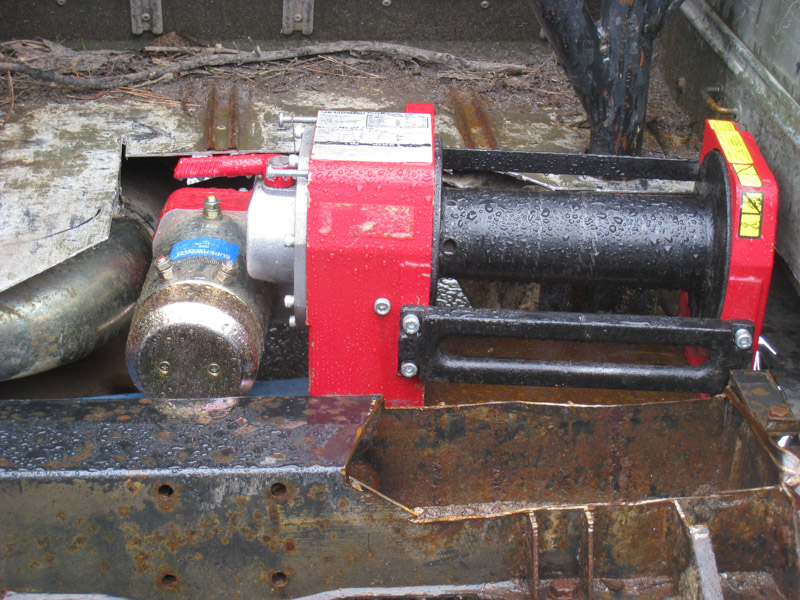

| Side view |  |
|
| Cutout from crossmember to allow rope to go under rear load deck |  |
|
 |
||

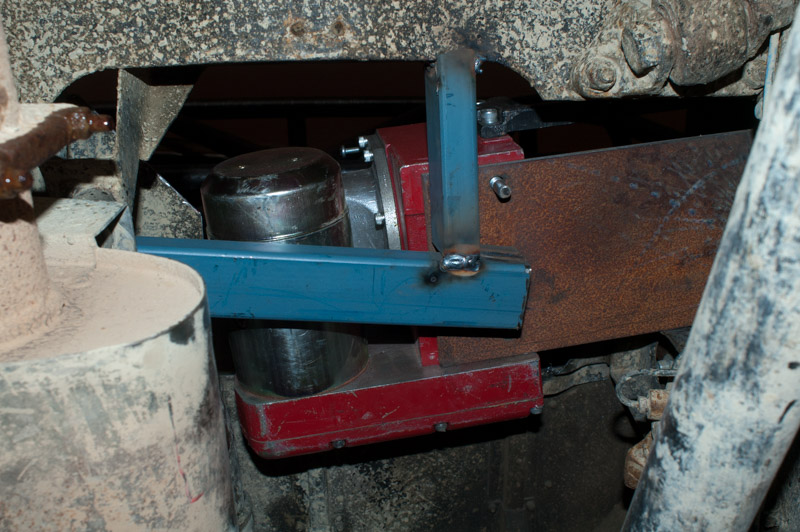

| View from underneath of rear winch mount plate |  |
|

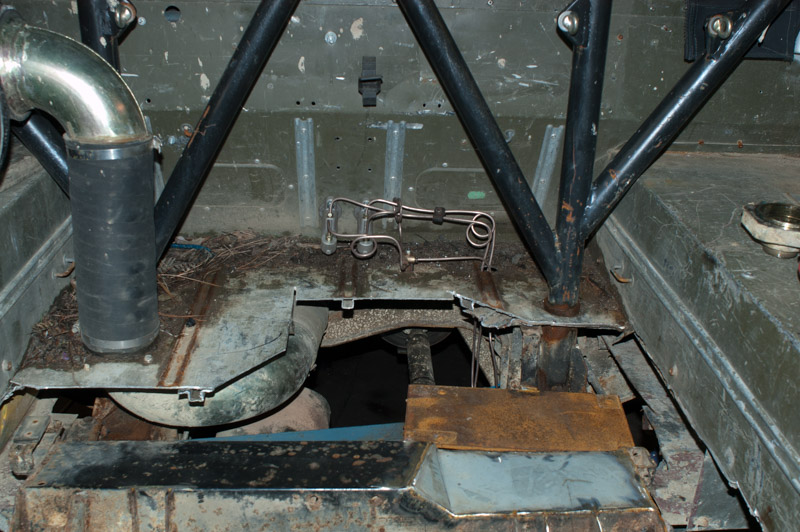

| Crossmember plated over |  |
|

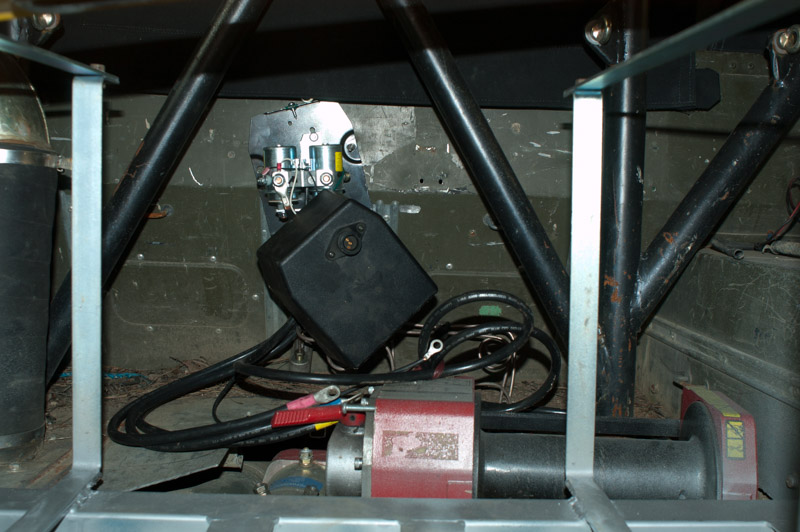

| Solenoid pack remote mounted on outside of seat bulkhead |  |
|

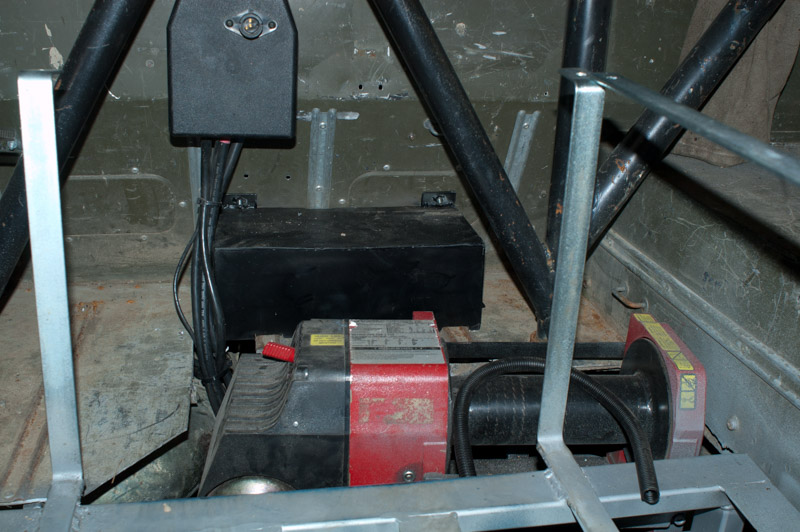

| All wired in, lower black box covers fiddle brake cylinders and pipes |  |
|

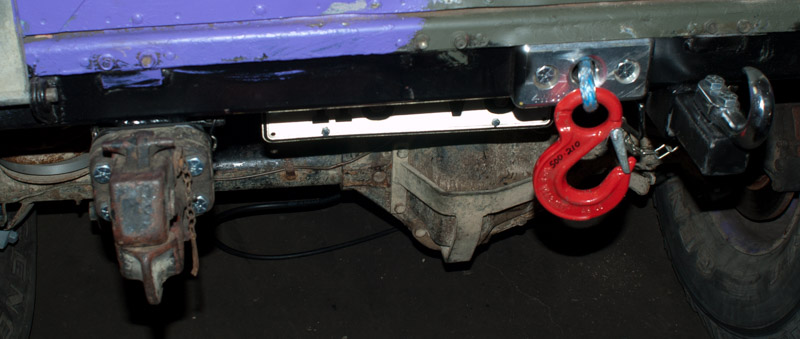

| Rear finished, the alloy hawse fairlead was custom at the time but now available from 4WDbits. NATO hitch and hook on receiver mounts |
 |
